Caterpillar 3126 Diesel Engine for Sale

Looking for a Caterpillar 3126 diesel engine for sale? HD Engines supplies CAT 3126 engines for medium-duty trucks, buses, vocational vehicles, industrial equipment, RVs, and other applications. Our inventory may include used, complete take-out, rebuilt, and replacement Caterpillar 3126 engines depending on current availability.

The Caterpillar 3126 is a 7.2-liter inline six-cylinder diesel engine known for its strong torque, compact design, electronic engine controls, and Caterpillar HEUI fuel injection technology. Introduced as the successor to the CAT 3116, the 3126 became one of Caterpillar's best-known medium-duty diesel engines before the platform eventually evolved into the Caterpillar C7.

If you need a CAT 3126 engine for sale, HD Engines can help identify the correct engine configuration using your engine serial number, arrangement number, horsepower rating, and application.

Caterpillar 3126 Engine Specifications

Important: Caterpillar produced the 3126 in numerous engine arrangements and horsepower ratings. Exact specifications, accessories, electronics, ECM programming, and compatibility can vary by application. Always verify the engine serial number and arrangement number when purchasing a replacement Caterpillar 3126 engine.

History of the Caterpillar 3126 Diesel Engine

The Caterpillar 3126 diesel engine was introduced during the mid-1990s as the successor to Caterpillar's 3116 medium-duty diesel engine.

The 3116 had already established Caterpillar as an important engine supplier for medium-duty trucks, buses, vocational vehicles, and other commercial applications. The 3126 continued that platform while increasing displacement to approximately 7.2 liters and incorporating increasingly sophisticated electronic engine management.

One of the most significant technologies associated with the Caterpillar 3126 family was Caterpillar's HEUI fuel injection system.

HEUI stands for Hydraulically Actuated Electronic Unit Injection. The system uses pressurized engine oil together with electronic controls to actuate the fuel injectors. This allowed Caterpillar to electronically manage injection timing and fuel delivery while providing strong performance and improved engine diagnostics.

The 3126 family progressed through different versions, including the 3126, 3126B, and 3126E, as Caterpillar continued developing the engine's electronic controls and emissions capabilities.

The Caterpillar 3126 platform eventually evolved into the Caterpillar C7, which became Caterpillar's next-generation 7.2-liter medium-duty diesel engine.

Because so many trucks, buses, RVs, vocational vehicles, and pieces of equipment were originally powered by these engines, demand remains strong today for Caterpillar 3126 replacement engines.

Caterpillar 3126 HEUI Fuel Injection System

One of the defining features of the CAT 3126 is its HEUI injection system.

Unlike a conventional mechanical diesel injection system, HEUI technology combines high-pressure engine oil with electronic engine controls to operate the fuel injectors.

Major components associated with the system can include:

• HEUI fuel injectors

• High-pressure oil pump

• Injection actuation pressure system

• Electronic Control Module (ECM)

• Engine sensors

• Fuel transfer system

• Engine wiring harnesses and electronic controls

Because the injection system depends on engine oil pressure for injector operation, proper oil level, oil quality, oil pressure, and regular maintenance are particularly important on the Caterpillar 3126.

The electronically controlled system also means that engine configuration and ECM compatibility should be considered when installing a replacement engine.

Caterpillar 3126 Engine Applications

The CAT 3126 diesel engine was used across a wide range of medium-duty, vocational, recreational, industrial, and specialty applications.

Common Caterpillar 3126 applications include:

• Box trucks

• Delivery trucks

• Dump trucks

• Service trucks

• Utility trucks

• Bucket trucks

• School buses

• Transit buses

• Shuttle buses

• Fire trucks

• Emergency vehicles

• Motorhomes and RVs

• Construction equipment

• Industrial equipment

• Cranes

• Specialty equipment

• Marine applications

Different applications can use different engine arrangements even when the base engine model is the same.

For example, two CAT 3126 engines may share the same basic displacement and architecture while using different oil pans, turbochargers, manifolds, flywheel housings, accessories, electronics, horsepower ratings, or ECM calibrations.

For this reason, customers searching for a Caterpillar 3126 diesel engine for sale should identify their original engine before purchasing a replacement.

How to Identify the Correct Caterpillar 3126 Engine

Correct engine identification is extremely important when purchasing a replacement CAT 3126.

We recommend providing as much of the following information as possible:

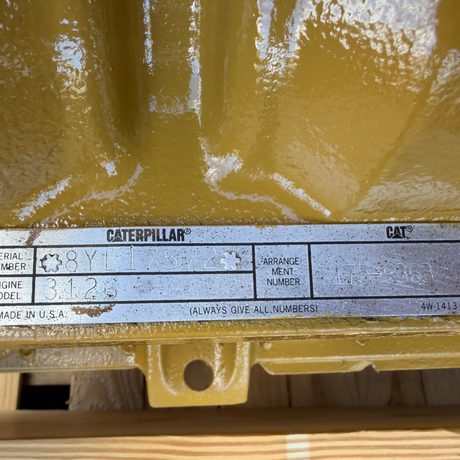

Engine Serial Number

The Caterpillar engine serial number is one of the most important pieces of information used to identify the original engine configuration.

Engine Arrangement Number

The arrangement number provides additional information about how Caterpillar originally configured the engine.

Vehicle or Equipment Information

Provide the:

• Year

• Make

• Model

• VIN

• Equipment model, when applicable

Horsepower Rating

The original horsepower rating can help determine the correct engine configuration and ECM requirements.

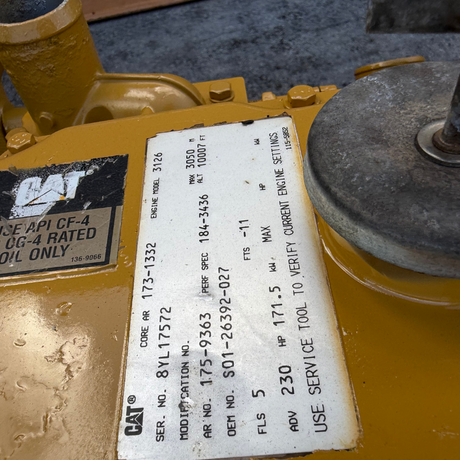

Engine Data Plate

A clear photograph of the original engine data plate is extremely helpful when identifying a replacement engine.

Providing this information allows the HD Engines team to help determine whether an available Caterpillar 3126 engine is suitable for your application.

Caterpillar 3126 vs. Caterpillar 3116

The Caterpillar 3126 followed the popular CAT 3116.

The 3116 has approximately 6.6 liters of displacement, while the 3126 increased displacement to approximately 7.2 liters.

The 3126 also represented Caterpillar's continued move toward more sophisticated electronically controlled fuel injection and engine management in its medium-duty engine lineup.

Although the two engines share Caterpillar medium-duty design heritage, customers should not assume a CAT 3116 and CAT 3126 are direct replacements for one another.

Engine mounts, electronics, accessories, fuel systems, flywheel housings, oil pans, ECM configurations, and other components can vary considerably by application.

Replacement compatibility should always be verified before purchasing an engine.

Caterpillar 3126 vs. Caterpillar C7

The Caterpillar C7 became the evolutionary successor to the 3126 family.

Both engines use approximately 7.2 liters of displacement and share important elements of Caterpillar's medium-duty diesel engine architecture.

However, they should not automatically be considered interchangeable.

The C7 incorporated later developments in electronic engine management, fuel control, and emissions technology. Components and configurations can vary depending on the year and application.

If you're considering replacing a Caterpillar 3126 with a C7—or vice versa—compatibility should be confirmed using the original engine serial number, arrangement number, vehicle information, electronics, and application.

Buying a Caterpillar 3126 Replacement Engine

When searching for a Caterpillar 3126 diesel engine for sale, finding the correct configuration is just as important as finding an engine with the right model number.

HD Engines specializes in diesel engines for commercial trucks, vocational vehicles, buses, industrial equipment, and other heavy-duty applications.

Depending on current inventory, we may offer:

• Used Caterpillar 3126 engines

• Complete take-out CAT 3126 engines

• Rebuilt Caterpillar 3126 engines

• Replacement CAT 3126 engines

• Caterpillar 3126 engine assemblies

• Caterpillar diesel engine components

Inventory changes regularly, so customers should contact HD Engines for current availability and configuration information.

Used Caterpillar 3126 Engines for Sale

A quality used Caterpillar 3126 engine can be a cost-effective solution when replacing a failed engine in an older truck, bus, RV, or piece of equipment.

However, purchasing a used diesel engine should involve more than simply matching the model number.

Important factors can include:

• Engine serial number

• Engine arrangement number

• Mileage or operating hours when available

• Horsepower rating

• Application

• ECM configuration

• Included accessories

• Physical engine configuration

• Testing information

• Warranty terms

At HD Engines, our team can help customers determine which available CAT 3126 engine most closely matches their existing application.

Rebuilt Caterpillar 3126 Engines

For customers seeking another replacement option, HD Engines may also have rebuilt Caterpillar 3126 engines for sale, depending on current inventory.

Rebuilt engine availability and configuration can vary.

When comparing used and rebuilt engines, customers should consider the application, expected usage, engine configuration, budget, and availability.

Contact HD Engines to discuss current Caterpillar 3126 inventory and determine which option is appropriate for your equipment.

What Information Should I Have Before Ordering?

Before contacting us for a CAT 3126 replacement engine, having the following information available can speed up the identification process:

1. Caterpillar engine serial number

2. Engine arrangement number

3. Year of vehicle or equipment

4. Make and model

5. VIN, when applicable

6. Original horsepower rating

7. Photograph of the engine data plate

8. Photographs of the existing engine

9. Description of the application

If you're unsure where to find this information, contact HD Engines and our sales team can help you determine what information is needed.

Caterpillar 3126 Diesel Engine for Sale

If you're looking for a Caterpillar 3126 diesel engine for sale, contact HD Engines for current inventory, pricing, and availability.

We supply Caterpillar diesel engines for customers throughout the United States and international markets. Shipping options are available for commercial truck, industrial, equipment, and other diesel engine applications.

Whether you need a used CAT 3126 engine, rebuilt Caterpillar 3126 engine, complete take-out engine, or replacement Caterpillar diesel engine, our team can help identify the correct configuration for your application.

Have your engine serial number and arrangement number available when contacting us whenever possible.

Find Your Caterpillar 3126 Engine at HD Engines

Need a CAT 3126 engine for sale? Contact HD Engines today for current Caterpillar 3126 inventory, pricing, engine identification assistance, and shipping options. Our team can help you identify the correct replacement engine based on your engine serial number, arrangement number, and application.

Contact HD Engines today for current Caterpillar 3126 diesel engine availability and pricing.
